Description

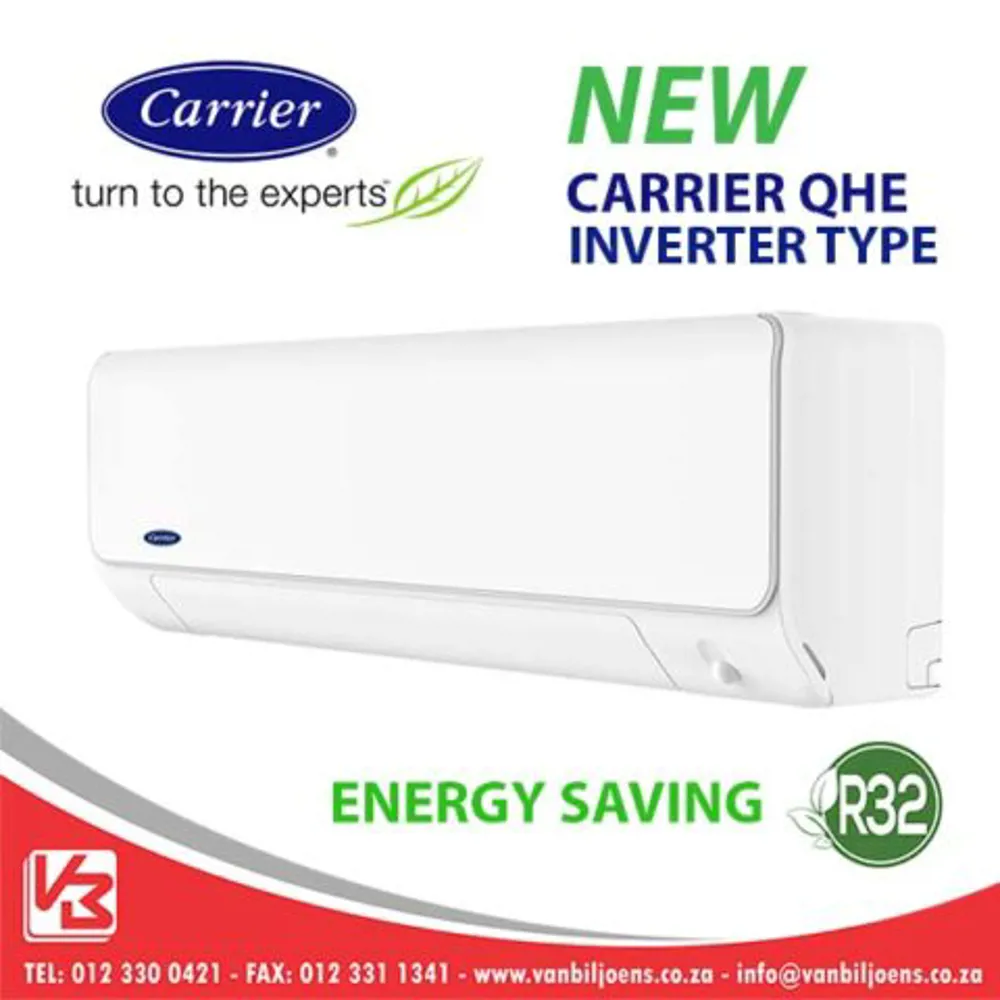

The Carrier QHE R32 inverter midwall split is a compact, wall-mounted air conditioner for efficient, quiet cooling and heating in residential or light-commercial spaces. It uses inverter technology and eco-friendlier R32 refrigerant to help reduce energy consumption and environmental impact.
Features
- ✓Inverter compressor for more stable temperatures and improved efficiency
- ✓Uses R32 refrigerant with lower global-warming potential than older gases
- ✓Midwall split with separate indoor and outdoor units
- ✓Supplied with a handheld remote for temperature and mode control
- ✓Includes mounting plate and basic installation hardware for the indoor unit
What's included in the installation
The installed price covers a standard back-to-back installation by our technicians.
Included
- ✓Indoor unit mounted, with the outdoor unit fitted directly outside (back-to-back)
- ✓Refrigerant pipe set, insulation and mounting brackets
- ✓Condensate drain and a short wall penetration
- ✓Indoor–outdoor interconnecting wiring
- ✓Vacuum, commissioning and a refrigerant leak check
- ✓Connection to your nearest existing wall plug (this unit runs within a standard wall-socket limit)
Not included
- –Pipe and cable runs beyond a basic back-to-back layout, or trunking over distance
- –Distribution-board (DB) work, dedicated circuits and the Certificate of Compliance
- –Core drilling through difficult structures, crane or scaffolding access
This 18,000 BTU unit runs within the limit of a standard wall socket, so we connect it to your nearest existing wall plug as part of the installation.
If you'd prefer it on a dedicated circuit, a registered electrician can wire it to your DB separately.
Exact scope is confirmed on site before work begins, and installation availability and final pricing are confirmed with your quote.
Technical specifications
| General | |
|---|---|
| Brand | Carrier |
| Model | QHE18D8SH |
| Indoor model | 42QHE18D8SH |
| Outdoor model | N/A |
| Type | Midwall Split |
| BTU | 18,000 |
| Cooling capacity | 5.20 kW |
| Heating capacity | 4.47 kW |
| Inverter | Yes |
| Refrigerant | R32 |
| Energy rating | A+++/A+++/A+ |
| COP/EER | 3.77 W/W |
| Voltage | 220-240V |
| Phase | 1 |
| Liquid pipe | 1/4" |
| Gas pipe | 1/2" |
| Efficiency | |
| Eer | 4.0 |
| Cop | 3.77 |
| Seer Cspf | 8.5 |
| Electrical | |
| Power Input Kw | 1.3 kW |
| Rated Current A | 13.0 A |
| Indoor | |
| Dimensions Indoor Mm | 965x239x319 |
| Weight Indoor Kg | 12.3 kg |
| Noise Indoor Db | 22.0 dB(A) |
| Pipework | |
| Max Pipe Length M | 30 m |
Specifications from supplier brochures/datasheets. Missing values shown as N/A — confirm critical specs before purchase.
