Description

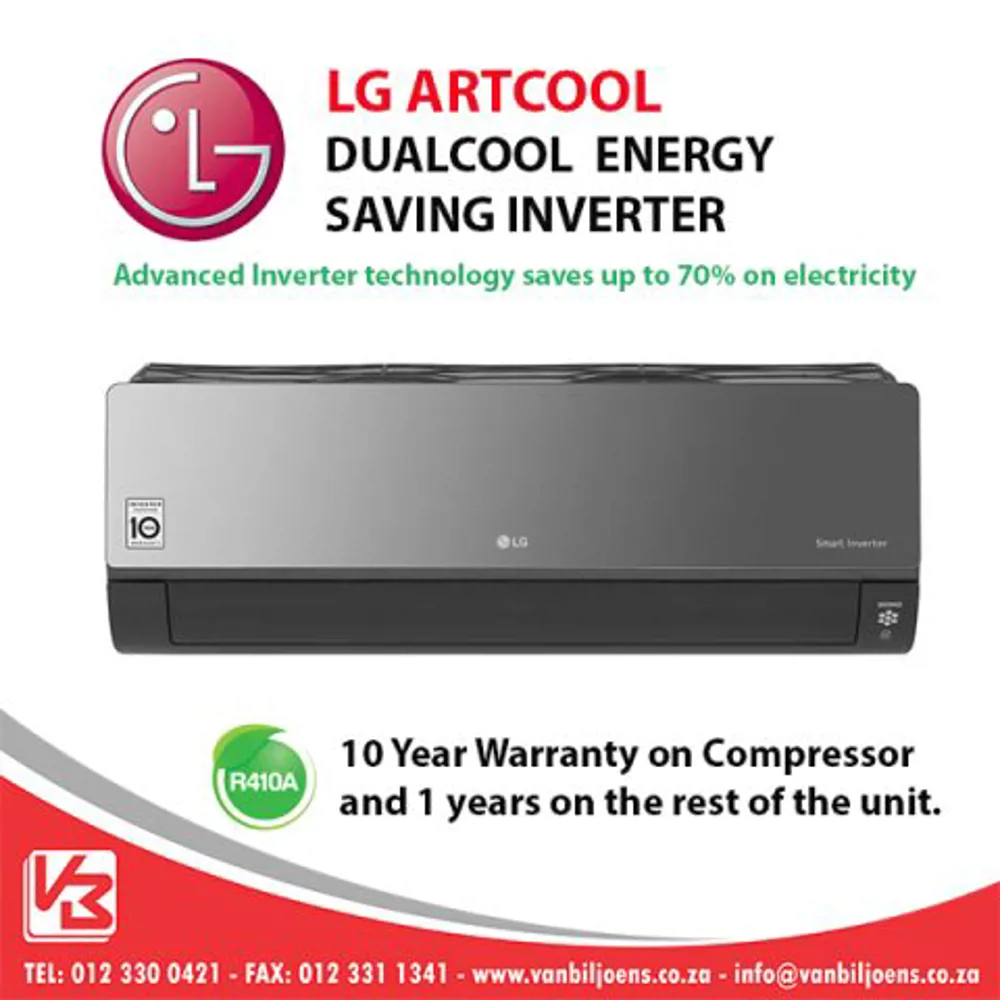

The LG ARTCOOL inverter midwall split combines efficient climate control with a distinctive mirror-finish front panel that blends into modern interiors. Its inverter technology delivers comfortable temperature control using R410A refrigerant.
Features
- ✓Inverter compressor technology for efficient cooling and heating
- ✓Uses R410A refrigerant
- ✓Distinctive mirror-finish front panel
- ✓Low-noise indoor unit design
- ✓Wall-mounted midwall configuration
What's included in the installation
The installed price covers a standard back-to-back installation by our technicians.
Included
- ✓Indoor unit mounted, with the outdoor unit fitted directly outside (back-to-back)
- ✓Refrigerant pipe set, insulation and mounting brackets
- ✓Condensate drain and a short wall penetration
- ✓Indoor–outdoor interconnecting wiring
- ✓Vacuum, commissioning and a refrigerant leak check
Not included
- –Pipe and cable runs beyond a basic back-to-back layout, or trunking over distance
- –Distribution-board (DB) work, dedicated circuits and the Certificate of Compliance
- –Core drilling through difficult structures, crane or scaffolding access
This 24,000 BTU non-inverter unit needs a dedicated circuit.
Because it draws more than a standard wall socket allows, it must be connected to your distribution board (DB) by a registered electrician on its own circuit.
In South Africa this is electrical installation work that requires a Certificate of Compliance (SANS 10142-1 / the Electrical Installation Regulations).
You arrange this connection with your own registered electrician — it is not part of the back-to-back installation price.
Exact scope is confirmed on site before work begins, and installation availability and final pricing are confirmed with your quote.
Technical specifications
| General | |
|---|---|
| Brand | LG |
| Model | A24RKH |
| Indoor model | N/A |
| Outdoor model | N/A |
| Type | Midwall Split |
| BTU | 24,000 |
| Cooling capacity | 6.45 kW |
| Heating capacity | 6.45 kW |
| Inverter | N/A |
| Refrigerant | R410A |
| Energy rating | N/A |
| COP/EER | 3.41 W/W |
| Voltage | 220–240 V |
| Phase | 1 |
| Liquid pipe | ø6.35 mm |
| Gas pipe | ø15.88 mm |
| Efficiency | |
| Eer | 3.21 |
| Cop | 3.41 |
| Indoor | |
| Dimensions Indoor Mm | 998 x 345 x 212 |
| Weight Indoor Kg | 14.3 kg |
| Noise Indoor Db | 48 dB(A) |
Specifications from supplier brochures/datasheets. Missing values shown as N/A — confirm critical specs before purchase.
