Description

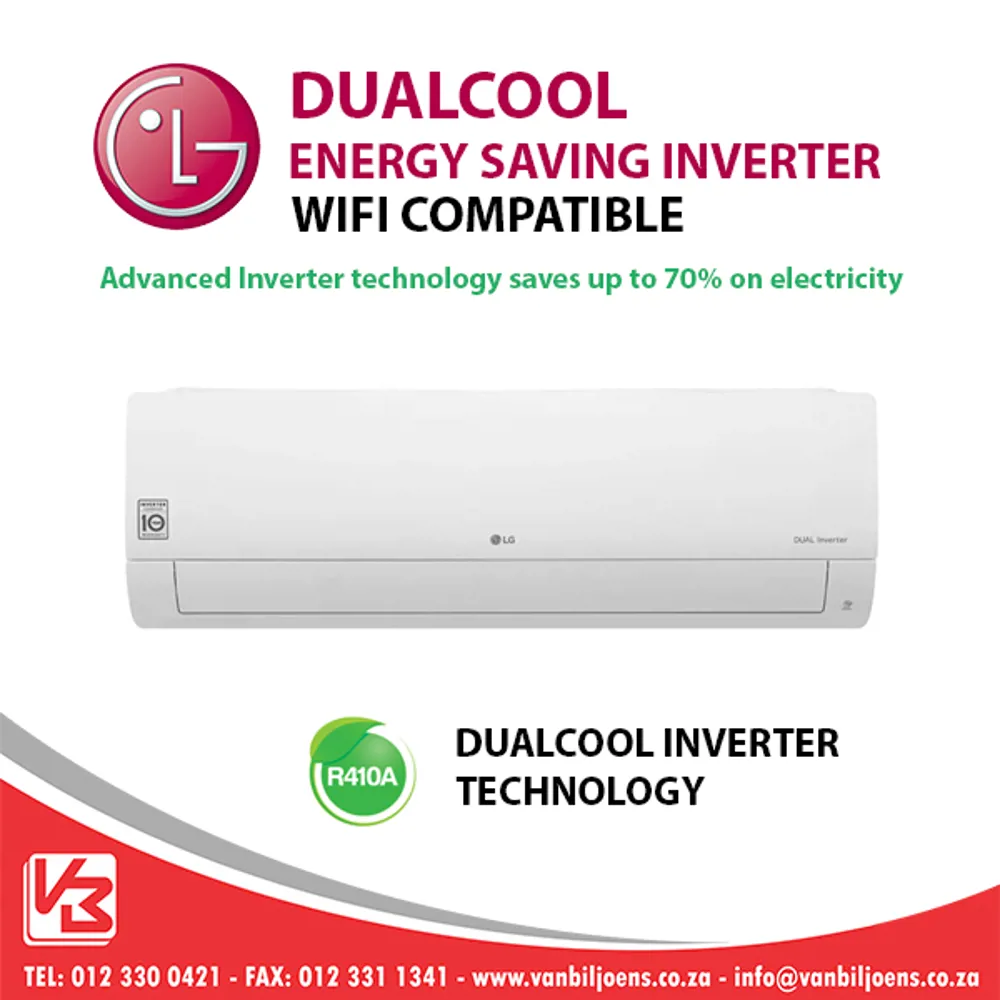

The LG DualCool WiFi inverter midwall split range offers efficient cooling and heating with WiFi control, using R410A refrigerant and LG's DualCool+ inverter technology for stable, energy-conscious operation.
Features
- ✓Inverter compressor technology
- ✓WiFi-capable control
- ✓Uses R410A refrigerant
- ✓Cooling and heating operation
- ✓Part of LG's DualCool+ wall-split range
What's included in the installation
The installed price covers a standard back-to-back installation by our technicians.
Included
- ✓Indoor unit mounted, with the outdoor unit fitted directly outside (back-to-back)
- ✓Refrigerant pipe set, insulation and mounting brackets
- ✓Condensate drain and a short wall penetration
- ✓Indoor–outdoor interconnecting wiring
- ✓Vacuum, commissioning and a refrigerant leak check
Not included
- –Pipe and cable runs beyond a basic back-to-back layout, or trunking over distance
- –Distribution-board (DB) work, dedicated circuits and the Certificate of Compliance
- –Core drilling through difficult structures, crane or scaffolding access
This 24,000 BTU non-inverter unit needs a dedicated circuit.
Because it draws more than a standard wall socket allows, it must be connected to your distribution board (DB) by a registered electrician on its own circuit.
In South Africa this is electrical installation work that requires a Certificate of Compliance (SANS 10142-1 / the Electrical Installation Regulations).
You arrange this connection with your own registered electrician — it is not part of the back-to-back installation price.
Exact scope is confirmed on site before work begins, and installation availability and final pricing are confirmed with your quote.
Technical specifications
| General | |
|---|---|
| Brand | LG |
| Model | M24EKH |
| Indoor model | N/A |
| Outdoor model | N/A |
| Type | Midwall Split |
| BTU | 24,000 |
| Cooling capacity | 6.45 kW |
| Heating capacity | 6.45 kW |
| Inverter | N/A |
| Refrigerant | R410A |
| Energy rating | A/A+ |
| COP/EER | 3.41 W/W |
| Voltage | 220–240 V |
| Phase | 1 |
| Liquid pipe | ø 6.35 mm |
| Gas pipe | ø 15.88 mm |
| Efficiency | |
| Eer | 3.21 |
| Cop | 3.41 |
| Electrical | |
| Power Input Kw | 2.01 kW |
| Rated Current A | 9.6 A |
| Indoor | |
| Dimensions Indoor Mm | 998 x 345 x 210 |
| Weight Indoor Kg | 11.7 kg |
| Noise Indoor Db | 48 dB(A) |
| Pipework | |
| Max Pipe Length M | 20 m |
Specifications from supplier brochures/datasheets. Missing values shown as N/A — confirm critical specs before purchase.
