AR09CQHGAWKNFA
Midwall Split · 9,000 BTU · Inverter
Description

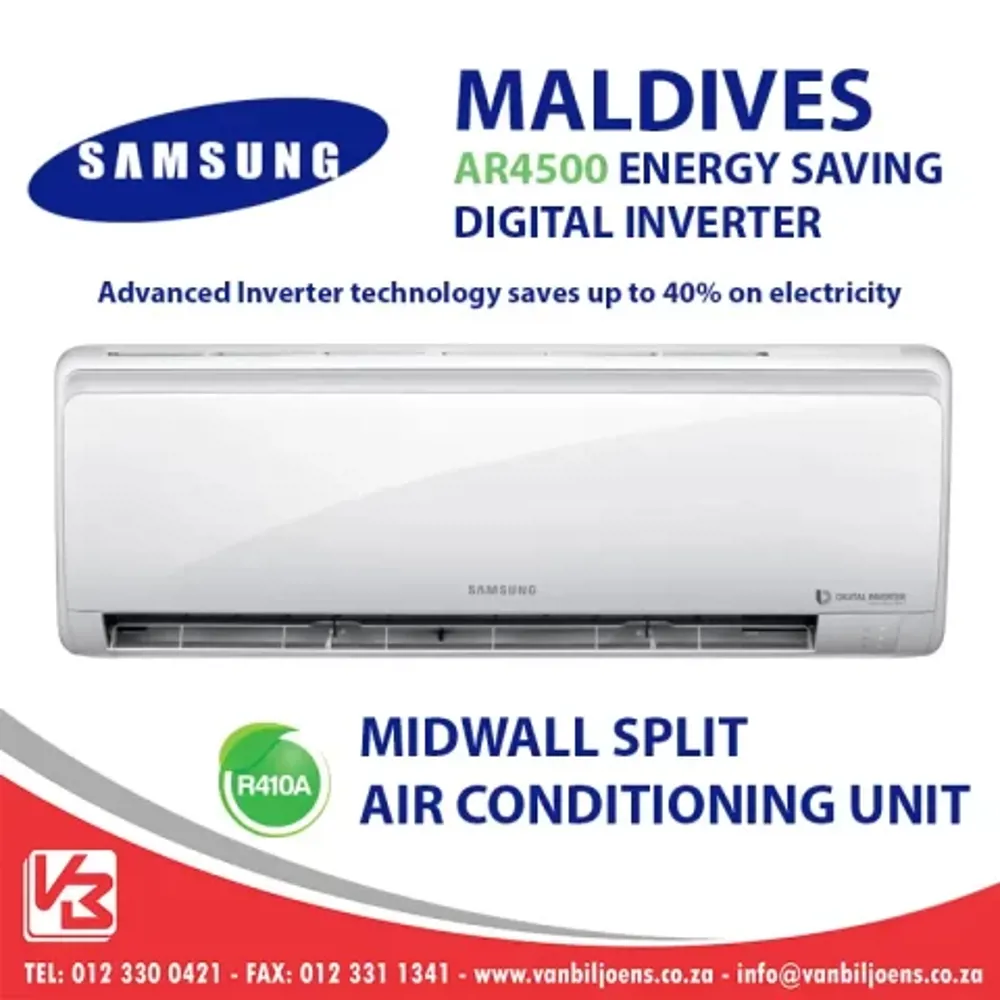

The Samsung AR4500 Inverter LIMITED STOCK AR09CQHGAWKNFA is an inverter midwall split rated at 9,000 BTU. It provides both cooling and heating. It runs on R410A refrigerant. It is available professionally installed by Van Biljoens on a standard back-to-back basis.
Features
- ✓9,000 BTU cooling capacity
- ✓Inverter compressor — quieter, more energy-efficient running
- ✓Reverse-cycle heating and cooling
- ✓Energy rating: B / (H) A+
- ✓Efficiency (COP/EER): 1.12 W/W
- ✓R410A refrigerant
- ✓Midwall Split unit
- ✓Available with professional back-to-back installation
What's included in the installation
The installed price covers a standard back-to-back installation by our technicians.
Included
- ✓Indoor unit mounted, with the outdoor unit fitted directly outside (back-to-back)
- ✓Refrigerant pipe set, insulation and mounting brackets
- ✓Condensate drain and a short wall penetration
- ✓Indoor–outdoor interconnecting wiring
- ✓Vacuum, commissioning and a refrigerant leak check
- ✓Connection to your nearest existing wall plug (this unit runs within a standard wall-socket limit)
Not included
- –Pipe and cable runs beyond a basic back-to-back layout, or trunking over distance
- –Distribution-board (DB) work, dedicated circuits and the Certificate of Compliance
- –Core drilling through difficult structures, crane or scaffolding access
Exact scope is confirmed on site before work begins, and installation availability and final pricing are confirmed with your quote.
Supply-only terms
If you choose the supply-only price, you receive the unit only and arrange your own installation.
- –No installation — supplied without fitting, piping, wiring or commissioning.
- –Delivery excluded — supply-only units are collected from Van Biljoens.
- –No warranty — supply-only units are sold without warranty.
We strongly recommend installation by a qualified, accredited installer. Refrigerant handling and connecting the unit to your distribution board are regulated work that must be carried out and certified by a registered person (SANS 10142-1).
Technical specifications
| General | |
|---|---|
| Brand | Samsung |
| Model | AR09CQHGAWKNFA |
| Indoor model | N/A |
| Outdoor model | N/A |
| Type | Midwall Split |
| BTU | 9,000 |
| Cooling capacity | 2.60 kW |
| Heating capacity | 2.75 kW |
| Inverter | Yes |
| Refrigerant | R410A |
| Energy rating | B / (H) A+ |
| COP/EER | 1.12 W/W |
| Voltage | 220-240V |
| Phase | 1 |
| Liquid pipe | 1/4" |
| Gas pipe | 3/8" |
| Efficiency | |
| Eer | 3.12 |
| Cop | 1.12 |
| Electrical | |
| Power Input Kw | 0.833 kW |
| Rated Current A | 3.8 A |
| Indoor | |
| Dimensions Indoor Mm | 911x290x343 |
| Weight Indoor Kg | 9.0 kg |
| Noise Indoor Db | 34.0 dB(A) |
| Pipework | |
| Max Pipe Length M | 15 m |
Specifications from supplier brochures/datasheets. Missing values shown as N/A — confirm critical specs before purchase.
