Description

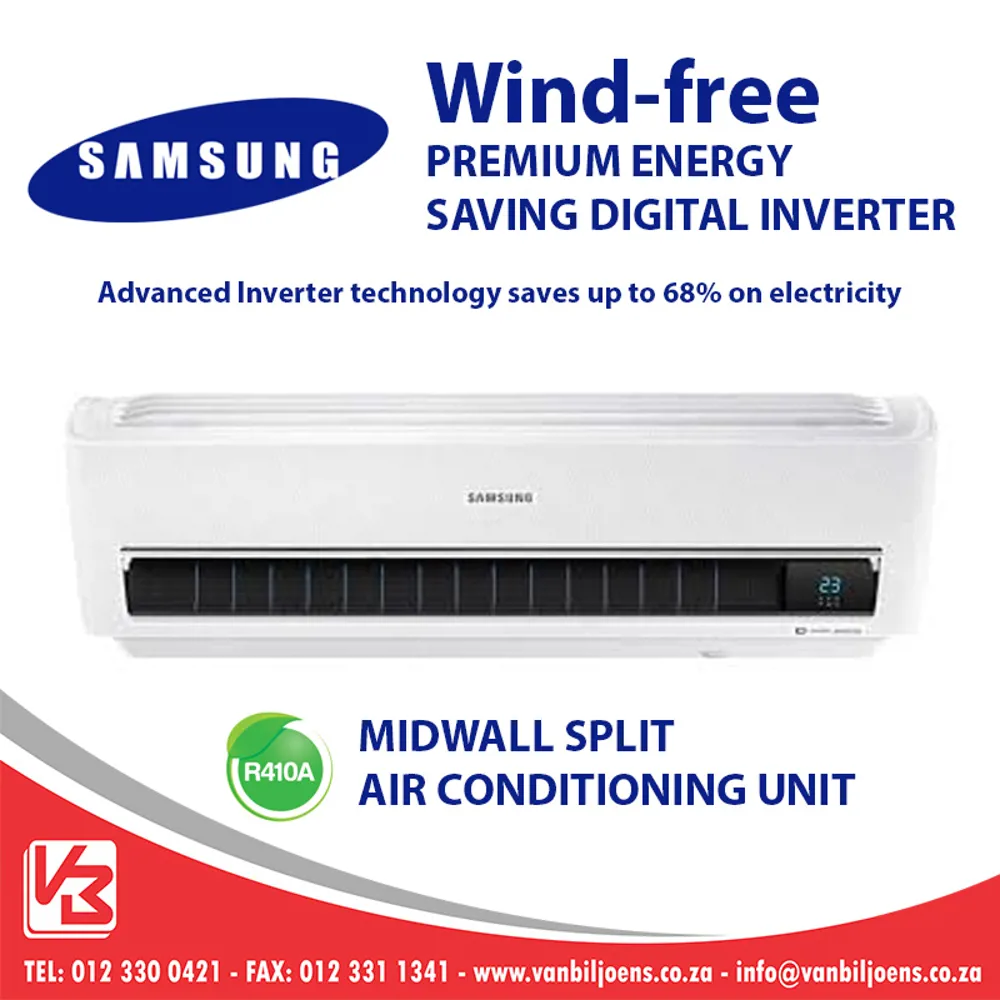

The Samsung AR9500 WindFree V2 inverter midwall split is a premium wall-mounted unit delivering draught-free cooling with advanced air filtration and smart control. Built-in AI and Wi-Fi let you optimise comfort and energy use via the SmartThings app.
Features
- ✓WindFree cooling disperses air gently through thousands of micro-holes
- ✓Digital inverter compressor for efficiency and more stable temperatures
- ✓PM1.0 filter helps capture ultrafine dust and reduce airborne bacteria
- ✓AI Auto Cooling analyses room conditions and usage to optimise settings
- ✓Built-in Wi-Fi for remote monitoring and control via SmartThings
- ✓Motion-detect sensor adjusts operation to room occupancy
What's included in the installation
The installed price covers a standard back-to-back installation by our technicians.
Included
- ✓Indoor unit mounted, with the outdoor unit fitted directly outside (back-to-back)
- ✓Refrigerant pipe set, insulation and mounting brackets
- ✓Condensate drain and a short wall penetration
- ✓Indoor–outdoor interconnecting wiring
- ✓Vacuum, commissioning and a refrigerant leak check
Not included
- –Pipe and cable runs beyond a basic back-to-back layout, or trunking over distance
- –Distribution-board (DB) work, dedicated circuits and the Certificate of Compliance
- –Core drilling through difficult structures, crane or scaffolding access
Smaller units (roughly 9 000–18 000 BTU) are connected to your nearest existing wall plug. Larger units — non-inverter above 18 000 BTU, or inverter above 24 000 BTU — must be connected to your distribution board by a registered electrician on a dedicated circuit (with a Certificate of Compliance); this DB connection is arranged by you and is not included.
Exact scope is confirmed on site before work begins, and installation availability and final pricing are confirmed with your quote.
Technical specifications
| General | |
|---|---|
| Brand | Samsung |
| Model | AR12BSAAAWK/FA |
| Indoor model | N/A |
| Outdoor model | N/A |
| Type | Midwall Split |
| BTU | N/A |
| Cooling capacity | 3.50 kW |
| Heating capacity | 3.50 kW |
| Inverter | N/A |
| Refrigerant | R410A |
| Energy rating | A |
| COP/EER | 3.72 W/W |
| Voltage | 220-240V |
| Phase | 1 |
| Liquid pipe | 6.35mm |
| Gas pipe | 9.52mm |
| Efficiency | |
| Eer | 3.3 |
| Cop | 3.72 |
| Electrical | |
| Power Input Kw | 1.06 kW |
| Rated Current A | 5.0 A |
| Indoor | |
| Dimensions Indoor Mm | 880x290x410 |
| Weight Indoor Kg | 10.4 kg |
| Noise Indoor Db | 38.0 dB(A) |
| Pipework | |
| Max Pipe Length M | 15 m |
Specifications from supplier brochures/datasheets. Missing values shown as N/A — confirm critical specs before purchase.
