Description

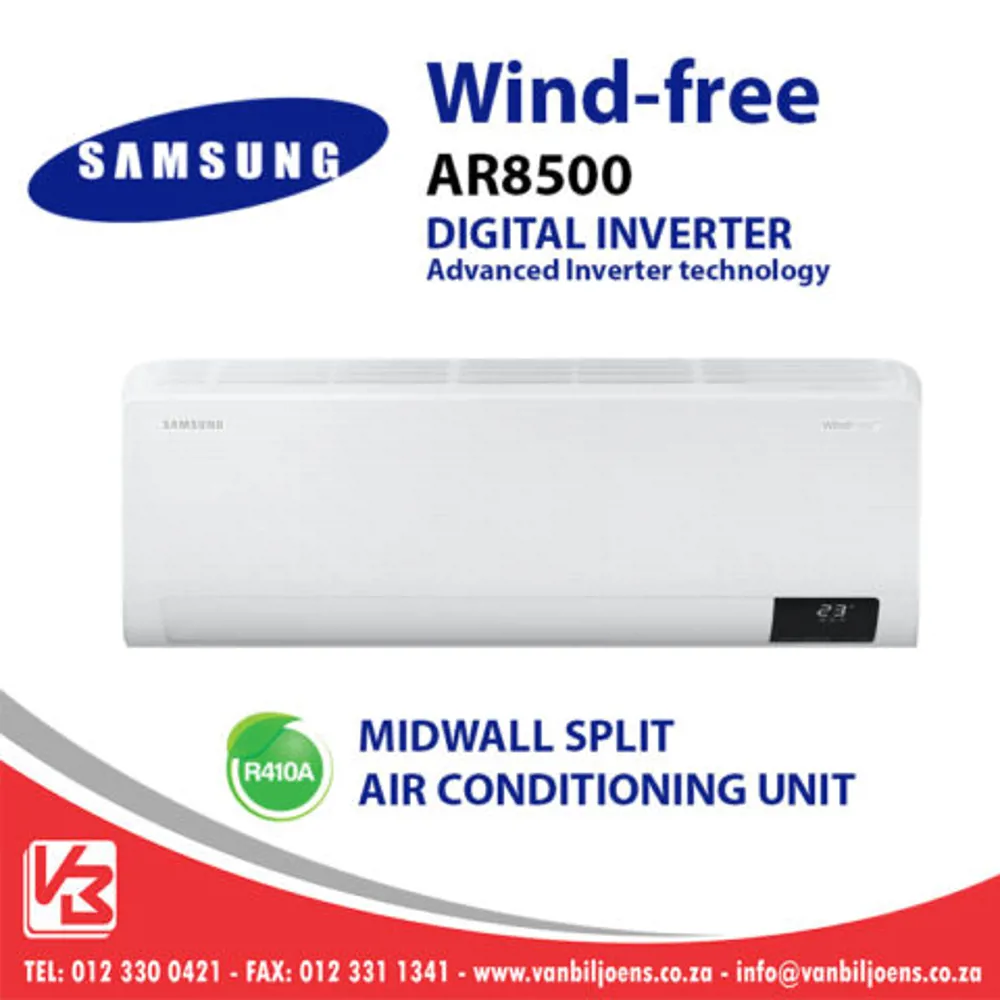

The Samsung AR8500 WindFree inverter midwall split pairs WindFree Cooling with efficient inverter technology for consistent, comfortable temperatures. Smart connectivity and multi-stage filtration help create a cleaner, more convenient indoor environment.
Features
- ✓WindFree Cooling disperses air gently through thousands of micro-holes to avoid cold draughts
- ✓WindFree mode uses significantly less energy than Fast Cooling
- ✓Digital inverter compressor for efficient, stable performance
- ✓Built-in Wi-Fi with SmartThings app for remote control and scheduling
- ✓AI Auto Cooling optimises operating modes automatically
- ✓Tri-Care filter helps capture dust, allergens and certain contaminants
What's included in the installation
The installed price covers a standard back-to-back installation by our technicians.
Included
- ✓Indoor unit mounted, with the outdoor unit fitted directly outside (back-to-back)
- ✓Refrigerant pipe set, insulation and mounting brackets
- ✓Condensate drain and a short wall penetration
- ✓Indoor–outdoor interconnecting wiring
- ✓Vacuum, commissioning and a refrigerant leak check
- ✓Connection to your nearest existing wall plug (this unit runs within a standard wall-socket limit)
Not included
- –Pipe and cable runs beyond a basic back-to-back layout, or trunking over distance
- –Distribution-board (DB) work, dedicated circuits and the Certificate of Compliance
- –Core drilling through difficult structures, crane or scaffolding access
This 18,000 BTU unit runs within the limit of a standard wall socket, so we connect it to your nearest existing wall plug as part of the installation.
If you'd prefer it on a dedicated circuit, a registered electrician can wire it to your DB separately.
Exact scope is confirmed on site before work begins, and installation availability and final pricing are confirmed with your quote.
Technical specifications
| General | |
|---|---|
| Brand | Samsung |
| Model | AR18BSEAMWK/FA |
| Indoor model | N/A |
| Outdoor model | N/A |
| Type | Midwall Split |
| BTU | 18,000 |
| Cooling capacity | 5.00 kW |
| Heating capacity | 5.50 kW |
| Inverter | Yes |
| Refrigerant | R410A |
| Energy rating | A |
| COP/EER | 3.57 W/W |
| Voltage | 220-240V |
| Phase | 1 |
| Liquid pipe | 1/4" |
| Gas pipe | 1/2" |
| Efficiency | |
| Eer | 3.33 |
| Cop | 3.57 |
| Electrical | |
| Power Input Kw | 1.5 kW |
| Rated Current A | 6.6 A |
| Indoor | |
| Dimensions Indoor Mm | 1115x290x375 |
| Weight Indoor Kg | 13.6 kg |
| Noise Indoor Db | 41.0 dB(A) |
| Pipework | |
| Max Pipe Length M | 20 m |
Specifications from supplier brochures/datasheets. Missing values shown as N/A — confirm critical specs before purchase.
