Description

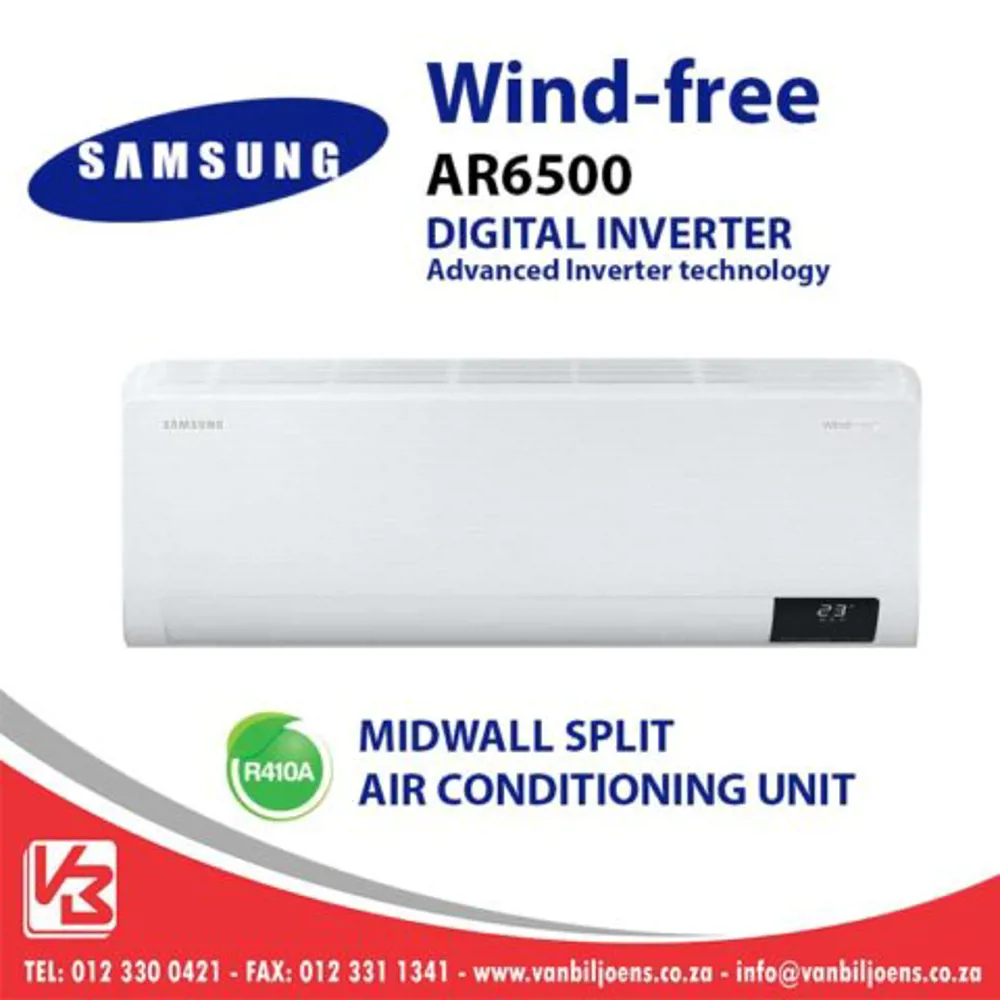

The Samsung AR6500 WindFree inverter midwall split range features Samsung's WindFree Cooling, dispersing air through thousands of micro-holes to cool without a direct cold draught, paired with a digital inverter compressor for efficient, stable temperatures. It uses R410A refrigerant.
Features
- ✓WindFree Cooling — air through micro-holes to avoid direct cold draughts
- ✓Digital inverter compressor for efficient, stable control
- ✓Fast, long-reach airflow
- ✓Good Sleep mode and 3-step Auto Clean
- ✓Easy Filter Plus with an anti-bacterial coating
- ✓Uses R410A refrigerant
What's included in the installation
The installed price covers a standard back-to-back installation by our technicians.
Included
- ✓Indoor unit mounted, with the outdoor unit fitted directly outside (back-to-back)
- ✓Refrigerant pipe set, insulation and mounting brackets
- ✓Condensate drain and a short wall penetration
- ✓Indoor–outdoor interconnecting wiring
- ✓Vacuum, commissioning and a refrigerant leak check
- ✓Connection to your nearest existing wall plug (this unit runs within a standard wall-socket limit)
Not included
- –Pipe and cable runs beyond a basic back-to-back layout, or trunking over distance
- –Distribution-board (DB) work, dedicated circuits and the Certificate of Compliance
- –Core drilling through difficult structures, crane or scaffolding access
This 24,000 BTU unit runs within the limit of a standard wall socket, so we connect it to your nearest existing wall plug as part of the installation.
If you'd prefer it on a dedicated circuit, a registered electrician can wire it to your DB separately.
Exact scope is confirmed on site before work begins, and installation availability and final pricing are confirmed with your quote.
Technical specifications
| General | |
|---|---|
| Brand | Samsung |
| Model | AR24BSHCMWK/FA |
| Indoor model | N/A |
| Outdoor model | N/A |
| Type | Midwall Split |
| BTU | 24,000 |
| Cooling capacity | 6.45 kW |
| Heating capacity | 6.45 kW |
| Inverter | Yes |
| Refrigerant | R22 |
| Energy rating | B |
| COP/EER | 3.23 W/W |
| Voltage | 220-240V |
| Phase | 1 |
| Liquid pipe | 1/4" |
| Gas pipe | 5/8" |
| Efficiency | |
| Eer | 3.09 |
| Cop | 3.23 |
| Electrical | |
| Power Input Kw | 2.09 kW |
| Rated Current A | 9.4 A |
| Indoor | |
| Dimensions Indoor Mm | 1115x290x375 |
| Weight Indoor Kg | 13.7 kg |
| Noise Indoor Db | 44.0 dB(A) |
| Pipework | |
| Max Pipe Length M | 20 m |
Specifications from supplier brochures/datasheets. Missing values shown as N/A — confirm critical specs before purchase.
