Description

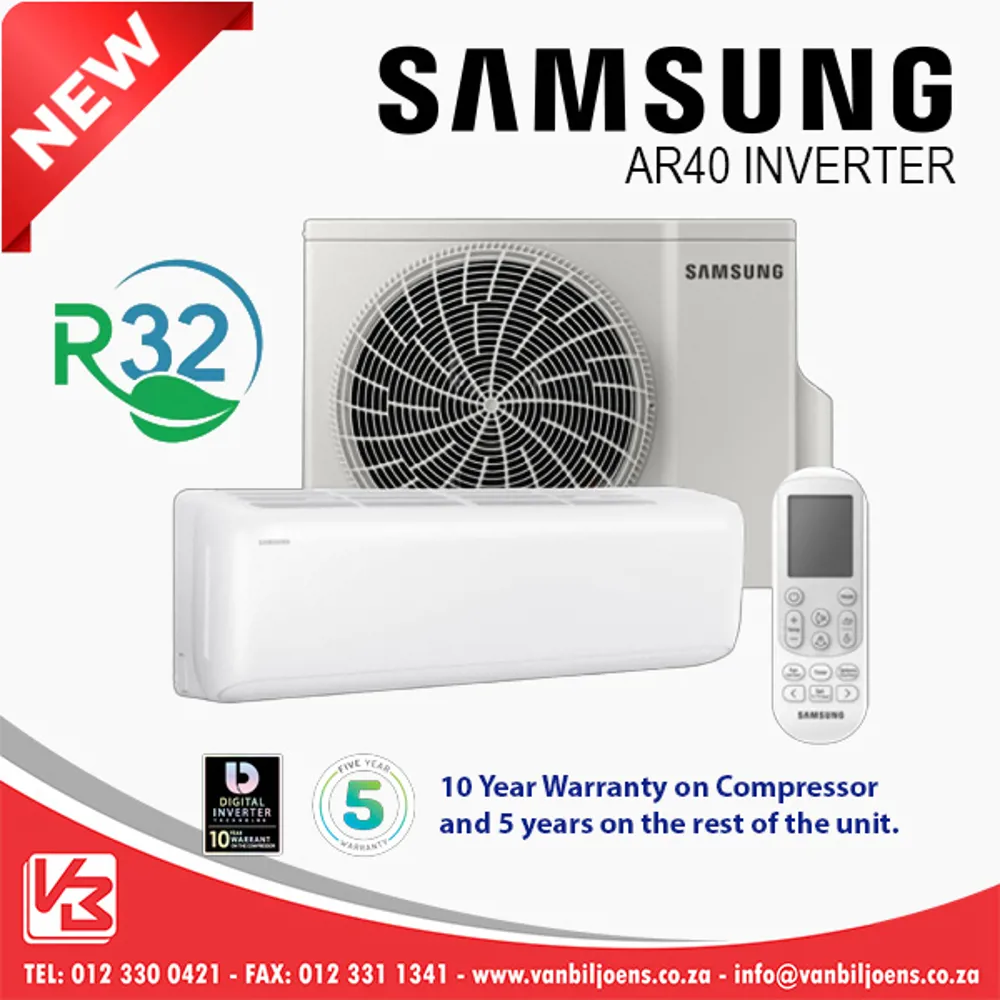

The Samsung AR40 R32 Inverter midwall split is an energy-saving wall-mounted air conditioner for reliable, efficient cooling and heating in residential spaces. It uses eco-friendlier R32 refrigerant and digital inverter technology to help reduce power consumption while maintaining consistent comfort.
Features
- ✓Digital inverter compressor for energy-efficient performance
- ✓Eco-friendlier R32 refrigerant
- ✓Fast Cool mode for rapid temperature pull-down
- ✓Good Sleep mode for more comfortable night-time operation
- ✓Dehumidification function to help reduce excess moisture
- ✓HD filter to help improve indoor air quality
What's included in the installation
The installed price covers a standard back-to-back installation by our technicians.
Included
- ✓Indoor unit mounted, with the outdoor unit fitted directly outside (back-to-back)
- ✓Refrigerant pipe set, insulation and mounting brackets
- ✓Condensate drain and a short wall penetration
- ✓Indoor–outdoor interconnecting wiring
- ✓Vacuum, commissioning and a refrigerant leak check
- ✓Connection to your nearest existing wall plug (this unit runs within a standard wall-socket limit)
Not included
- –Pipe and cable runs beyond a basic back-to-back layout, or trunking over distance
- –Distribution-board (DB) work, dedicated circuits and the Certificate of Compliance
- –Core drilling through difficult structures, crane or scaffolding access
This 12,000 BTU unit runs within the limit of a standard wall socket, so we connect it to your nearest existing wall plug as part of the installation.
If you'd prefer it on a dedicated circuit, a registered electrician can wire it to your DB separately.
Exact scope is confirmed on site before work begins, and installation availability and final pricing are confirmed with your quote.
Technical specifications
| General | |
|---|---|
| Brand | Samsung |
| Model | AR40F12C0AG/FA |
| Indoor model | N/A |
| Outdoor model | N/A |
| Type | Midwall Split |
| BTU | 12,000 |
| Cooling capacity | 3.19 kW |
| Heating capacity | 3.29 kW |
| Inverter | Yes |
| Refrigerant | R32 |
| Energy rating | B (Heating: A++) |
| COP/EER | 3.61 W/W |
| Voltage | 220-240V |
| Phase | 1 |
| Liquid pipe | 1/4" |
| Gas pipe | 3/8" |
| Efficiency | |
| Eer | 3.1 |
| Cop | 3.61 |
| Electrical | |
| Power Input Kw | 1.027 kW |
| Rated Current A | 4.7 A |
| Indoor | |
| Dimensions Indoor Mm | 835x275x200 |
| Weight Indoor Kg | 9.0 kg |
| Noise Indoor Db | 44.0 dB(A) |
| Pipework | |
| Max Pipe Length M | 10 m |
Specifications from supplier brochures/datasheets. Missing values shown as N/A — confirm critical specs before purchase.
