Description

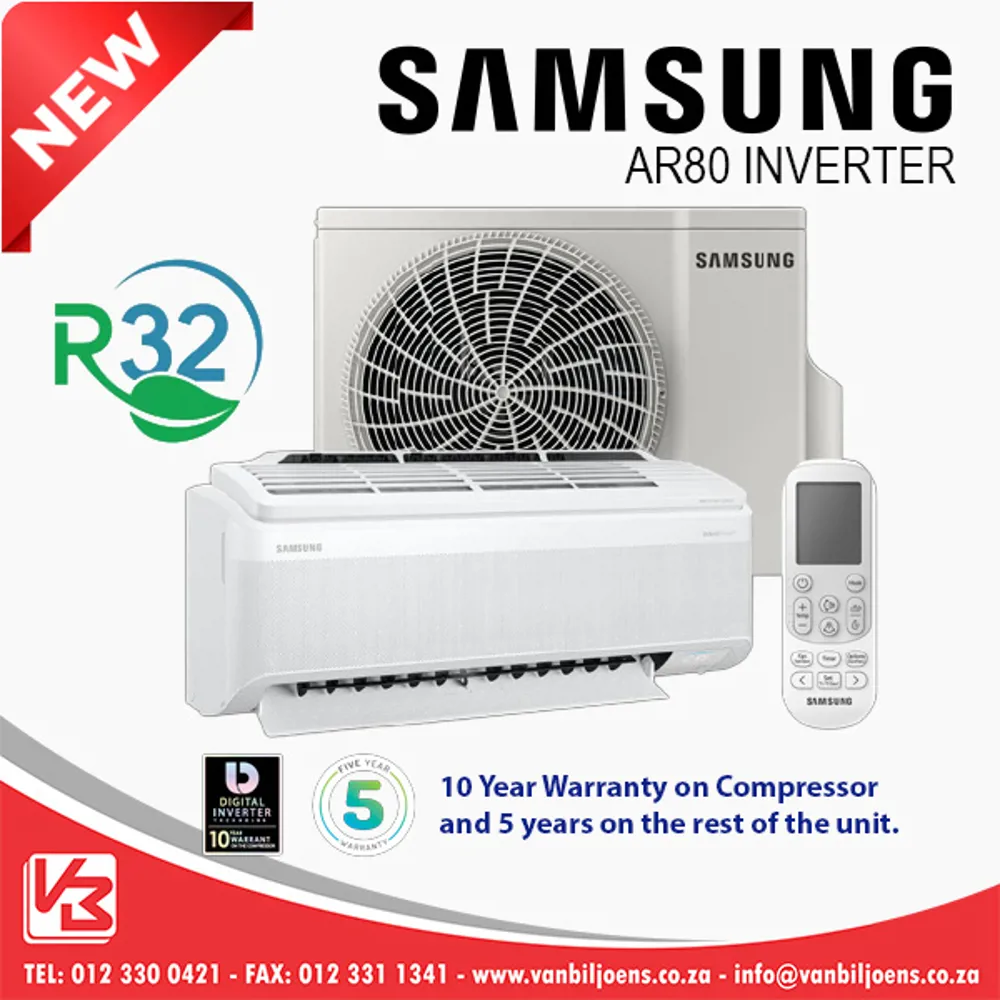

Samsung's AR80 WindFree inverter midwall split delivers powerful yet gentle cooling by dispersing air through thousands of micro-holes for a draught-free indoor climate. With R32 refrigerant, AI features and smart connectivity, it's engineered for efficient, personalised comfort in modern homes and offices.
Features
- ✓WindFree cooling panel disperses air gently through micro-holes to reduce direct cold draughts
- ✓Digital inverter compressor for energy-efficient temperature control
- ✓Eco-friendlier R32 refrigerant
- ✓AI Auto Cooling adjusts settings to room conditions and usage
- ✓Motion-detect sensor tailors airflow to occupancy
- ✓SmartThings compatibility for remote control and monitoring
What's included in the installation
The installed price covers a standard back-to-back installation by our technicians.
Included
- ✓Indoor unit mounted, with the outdoor unit fitted directly outside (back-to-back)
- ✓Refrigerant pipe set, insulation and mounting brackets
- ✓Condensate drain and a short wall penetration
- ✓Indoor–outdoor interconnecting wiring
- ✓Vacuum, commissioning and a refrigerant leak check
- ✓Connection to your nearest existing wall plug (this unit runs within a standard wall-socket limit)
Not included
- –Pipe and cable runs beyond a basic back-to-back layout, or trunking over distance
- –Distribution-board (DB) work, dedicated circuits and the Certificate of Compliance
- –Core drilling through difficult structures, crane or scaffolding access
This 24,000 BTU unit runs within the limit of a standard wall socket, so we connect it to your nearest existing wall plug as part of the installation.
If you'd prefer it on a dedicated circuit, a registered electrician can wire it to your DB separately.
Exact scope is confirmed on site before work begins, and installation availability and final pricing are confirmed with your quote.
Technical specifications
| General | |
|---|---|
| Brand | Samsung |
| Model | AR80F24CADW/FA |
| Indoor model | N/A |
| Outdoor model | N/A |
| Type | Midwall Split |
| BTU | 24,000 |
| Cooling capacity | 6.50 kW |
| Heating capacity | 6.90 kW |
| Inverter | Yes |
| Refrigerant | R32 |
| Energy rating | C:A, H:A+ |
| COP/EER | 3.45 W/W |
| Voltage | 220-240V |
| Phase | 1 |
| Liquid pipe | 1/4" |
| Gas pipe | 5/8" |
| Efficiency | |
| Eer | 3.32 |
| Cop | 3.45 |
| Electrical | |
| Power Input Kw | 1.96 kW |
| Rated Current A | 8.8 A |
| Indoor | |
| Dimensions Indoor Mm | 1055x299x215 |
| Weight Indoor Kg | 14.7 kg |
| Noise Indoor Db | 44.0 dB(A) |
| Pipework | |
| Max Pipe Length M | 30 m |
Specifications from supplier brochures/datasheets. Missing values shown as N/A — confirm critical specs before purchase.
