Description

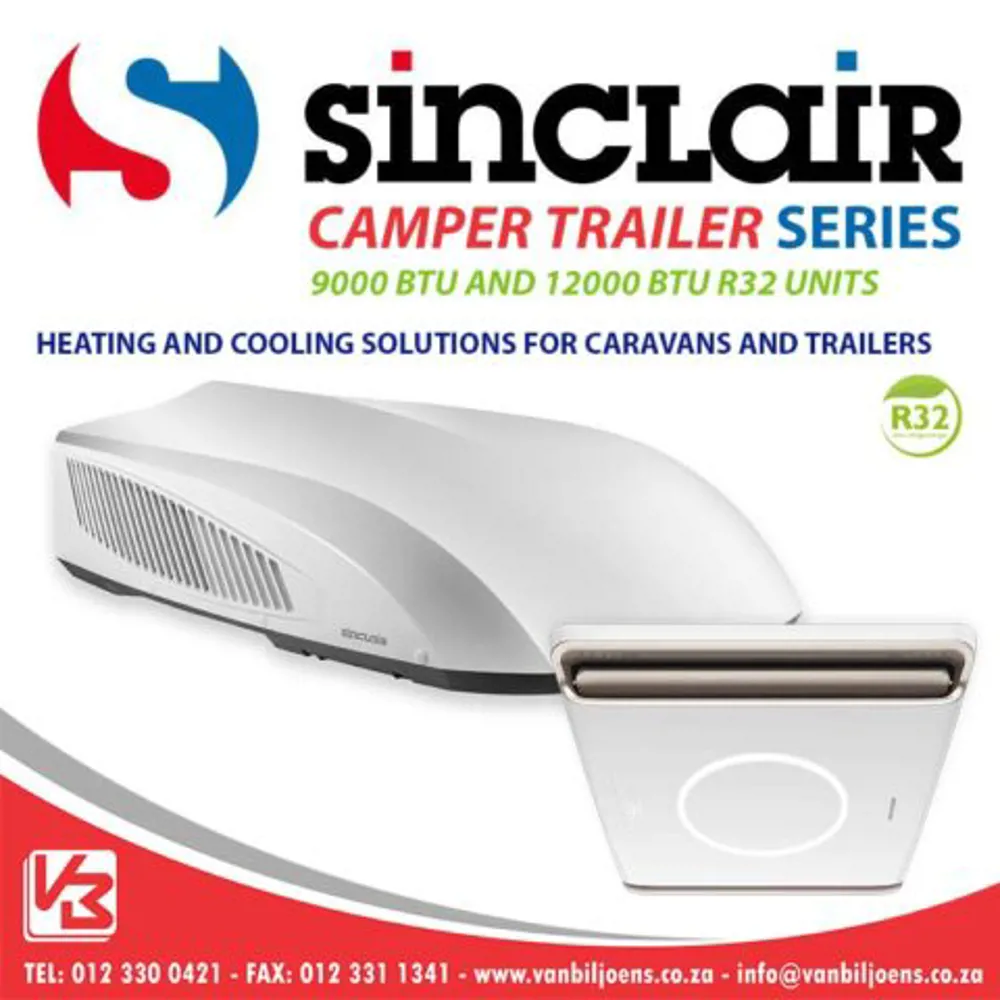

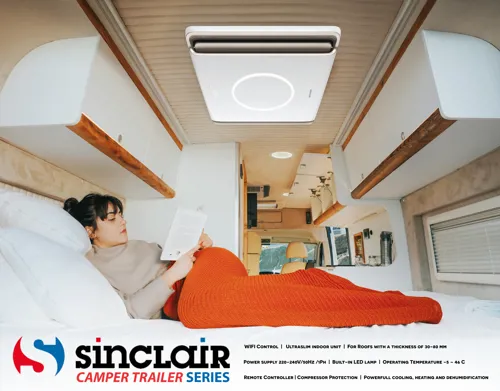

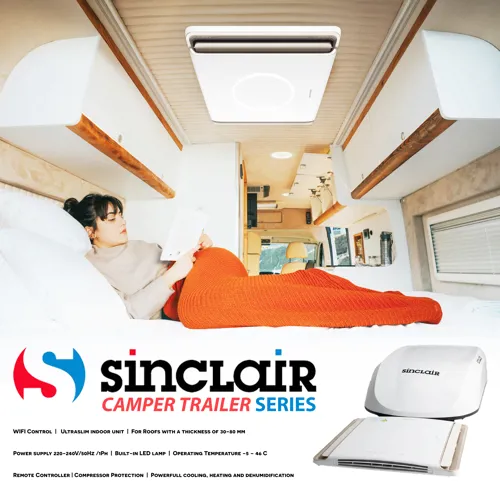

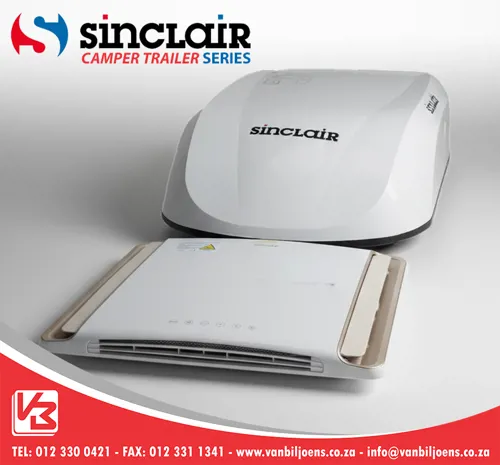

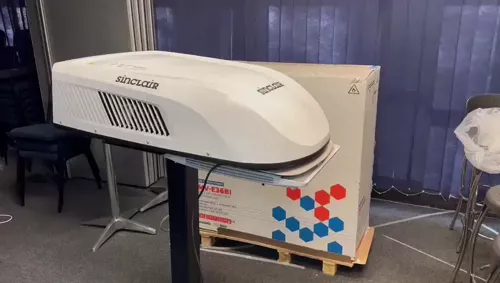

The Sinclair Caravan Unit (R32) is a compact roof-mounted air conditioner designed specifically for caravans and mobile homes. It provides cooling and heating using eco-friendlier R32 refrigerant and runs from a 220–240V supply for campsite or shore power.
Features
- ✓Roof-mounted design for caravans, camper trailers and mobile homes
- ✓Uses eco-friendlier R32 refrigerant
- ✓Operates on 220–240V, 50 Hz single-phase power
- ✓Cooling and heating for year-round comfort
- ✓Control via remote, manual panel, and optional Wi-Fi on selected models
Supply-only terms
If you choose the supply-only price, you receive the unit only and arrange your own installation.
- –No installation — supplied without fitting, piping, wiring or commissioning.
- –Delivery excluded — supply-only units are collected from Van Biljoens.
- –No warranty — supply-only units are sold without warranty.
We strongly recommend installation by a qualified, accredited installer. Refrigerant handling and connecting the unit to your distribution board are regulated work that must be carried out and certified by a registered person (SANS 10142-1).
Technical specifications
| General | |
|---|---|
| Brand | Sinclair |
| Model | ASV25BS |
| Indoor model | N/A |
| Outdoor model | N/A |
| Type | Caravan |
| BTU | 9,000 |
| Cooling capacity | 2.60 kW |
| Heating capacity | 2.40 kW |
| Inverter | N/A |
| Refrigerant | R32 |
| Energy rating | N/A |
| COP/EER | 2.2 W/W |
| Voltage | 220V |
| Phase | 1 |
| Liquid pipe | N/A |
| Gas pipe | N/A |
| Efficiency | |
| Eer | 2.3 |
| Cop | 2.2 |
| Indoor | |
| Dimensions Indoor Mm | 610x49x485 |
| Weight Indoor Kg | 2.7 kg |
| Noise Indoor Db | 53.0 dB(A) |
Specifications from supplier brochures/datasheets. Missing values shown as N/A — confirm critical specs before purchase.
